Understanding SolarEdge Inverter Status LED

Understanding SolarEdge Inverter Status LED: Decoding LED Indicators and Switch Positions for System Performance Insights

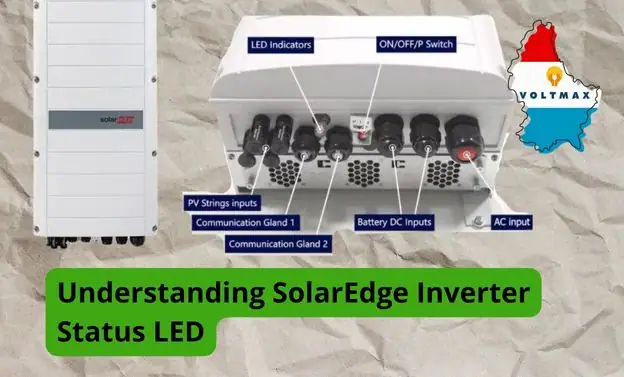

Maximize your inverter’s efficiency with our comprehensive guide on interpreting the status and performance signals. Your inverter is equipped with a user-friendly switch and three color-coded LEDs, each providing crucial information about your system’s operation. Whether it’s identifying errors or assessing performance, our detailed tables explain the various LED colors and switch position combinations, ensuring you have all the necessary insights for optimal inverter performance.

Learn the significance of each LED color and switch position in our easy-to-follow guide, designed to help you quickly diagnose and understand your system’s status. Stay informed and maintain your inverter at its best with our expert insights.

Inverter Status LED

Main Indications

Description LED
Inverter is communicating with the monitoring platform Any combination of LEDs on condition that the blue LED is on.



System is producing Any combination of LEDs on condition that the green LED is on.
AC is connected but the system is not producing AC is connected but the system is not producing

System error Any combination of LEDs on condition that the red LED is on.

System Performance Information

LED Page Switch Position LED
  • Power optimizers not paired
  • S_OK
  • Power optimizers not paired
  • No S_OK
Pairing
Wake-up/ Grid Monitoring
  • System Producing
  • S_OK
  • System Producing
  • No S_OK
  • Night mode (no production)
  • S_OK
  • Night mode (no production)
  • No S_OK
  • PID Rectifier
  • S_OK
  • PID Rectifier
  • No S_OK
  • Inverter is OFF (Safe DC)
  • S_OK
  • Inverter is OFF (Safe DC)
  • No S_OK
  • Inverter is OFF (DC not safe)
  • S_OK
  • Inverter is OFF (DC not safe)
  • No S_OK
Inverter configuration or reboot
Inverter firmware upgrade
No AC power
System error



AC Output Power Production Percentage

LED Page Switch Position LED
Percentage of AC Production: 0 – 33 %
Percentage of AC Production: 33 – 66 %
Percentage of AC Production: 66 – 100 %

Extended Inverter Lifespan through Proper Signal Interpretation: Regular monitoring and understanding of your inverter’s signals can not only enhance its performance but also extend its lifespan. By promptly responding to the indicators, you can prevent long-term damage and ensure that your inverter remains in top condition for a longer period.

Cost-Effective Operation and Energy Saving Tips: This guide also sheds light on how understanding your inverter’s status can lead to more cost-effective operation. Learn how to adjust settings based on the LED indications to optimize energy use and save on electricity bills. This aspect is particularly beneficial for those looking to make their homes or businesses more energy-efficient.

Stay ahead in managing your energy system effectively with our in-depth guide. Embrace the full potential of your inverter by mastering the art of reading its signals and ensuring optimal performance.
